IGBT逆變高精密電阻焊機的特點：
1、四種控制方式：有[3次定電流] [3次定電壓] [3次定功率] [3次定脈寬] 4種控制方式可以找到最合適的焊接條件。
2、直流輸出。直流焊接提高了焊接熱效率，使得不受電感性負載的影響，可以流通大電流。對有色金屬材料和一些難焊材料的焊接特別適合，焊接過程穩定、焊接質量顯著提高。
3、響應速度快。通電時間控制周期≤0.25ms，比通常焊機的20ms提高80倍以上，與電容儲能焊機相比，可控性明顯增強，特別適合于精密件的焊接和高質量、高精度、高速度焊接。
4、采用微機控制，保證工藝的一致性。多組焊接工藝參數存儲，參數調整與焊接循環面板直觀指示，簡化操作。
5、三相負載平衡（三相輸入機型），功率因素高。
6、節能，電流損耗是傳統焊機的2/5。達到同等焊接效果時，峰值電流可以很低。
7、體積小、重量輕。適合于機器人應用。
8、三段通電，每段通電時間、電流、電壓、功率、脈寬大小可單獨調節。前后兩段具有緩升和緩降功能，便于抑制焊接飛濺，可獲得穩定高品質的焊接效果。
9、可分別監測各段通電的電流、電壓、功率、脈寬（平均有效值）
10、通電時間短、熱效率高、焊接成型美觀。
11、適用于鈦、鎳、鋁、鎂、鉬、鉭、鈮、銀、鉑、鋯、鈾、鈹、鉛等合金料，不銹鋼、銅、鐵、白金、黃金、K黃金、K白金、銀等貴金屬的高質量焊接。
可配套在點焊、碰焊、對焊、縫焊的場合。

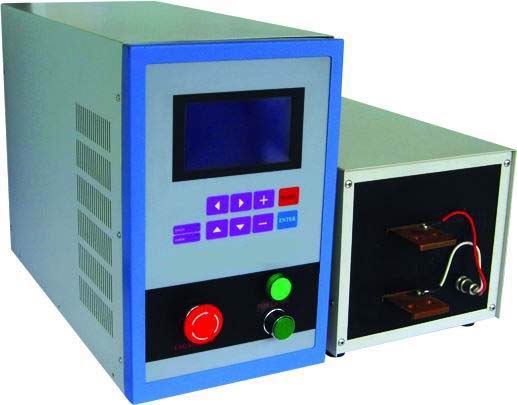

IGBT inverter high-precision resistance welding machine, spot welding machine, sealing machine

IGBT inverter high-precision resistance welding machine, spot welding machine, sealing machine features:
(1) DC output. DC welding heat to increase the efficiency of non-ferrous materials and are difficult to weld materials particularly suitable for welding, the welding process stability and weld quality improved significantly.
(2) response speed. Power control cycle time ≤ 0.25ms, control more than 80 times to increase accuracy, particularly suited to precision welding and high-quality parts, high-precision, high-speed welding.
(3) the use of computer control to ensure consistency of process. Multiple sets of welding parameters storage, parameter adjustment and welding cycle intuitive panel instructions, simplifying the operation.
(4) three-phase load balancing (three-phase input models), high power factor.
(5) saving energy (than the traditional machine-saving 40%).
(6) small size, light weight. Suitable for robot applications.
(7) three-pulse power, each pulse of the pass current time, the size of current regulation can be, respectively.
(8)   Can be effectively inhibited Welding spatter to achieve a stable high-quality welding results.
(9) can monitor the current value (average RMS)
(10) can be controlled to achieve a variety of ways, (constant current, constant voltage, set power, set temperature, set pulse width)
(11) welding time is short, high thermal efficiency, welding beautiful shape.
(12) and stable DC output, the inductive load from the impact of current can be achieved.
Applied to titanium, nickel, aluminum, magnesium, molybdenum, tantalum, niobium, silver, platinum, zirconium, uranium, beryllium, lead alloy material, stainless steel, copper, iron, platinum, gold, K gold, K platinum, silver and other precious metals high-quality welding.
Can be complementary in the spot, touch welding, butt welding, seam welding occasion.
