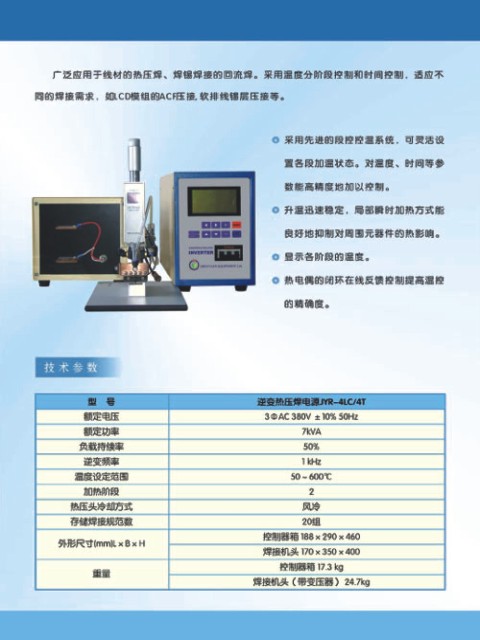

逆變精密熱壓焊接機 HOT BAR

廣泛應用于線材的熱壓焊、焊錫焊接的回流焊,IC貼片。采用溫度分階段控制和時間控制，適應不同的焊接需求，如：LCD、觸摸屏等的扁平電纜熱壓接合及ACF接合,繼電器、打印機、眼鏡等的樹脂熱壓接合,手機、數碼相機使用的CCD、CMOS的焊錫接合,電腦、USB、攝像機內的FPC等扁平電纜的焊錫接合,硬盤(HDD)等漆包線的焊錫焊接及DVD、AV機器等家用電器的制造。
1、采用先進的段控控溫系統，可靈活設置各段加溫狀態。對溫度、時間等參數能高精度地加以控制。
2、升溫迅速穩定、局部瞬時加熱方式能良好地抑制對周圍元件的熱影響。
3、顯示各階段的溫度。
4、熱電偶的閉環在線反饋控制提高溫度的精確度。
5、焊接壓力、焊接時間、焊接溫度可精確調節。
6、可存貯20組焊接參數更換產品時非常方便。
7、多個焊點一次完成，效率高、一致性好、焊接強度高、焊點美觀、操作簡單。
8、10萬次的焊頭壽命,為貴客戶創造價值.

特別適用于FPC TO PCB / HSC(斑馬紙) TO FPC(柔性線路板)/ HSC TO LCD /TAB TO PCB 斑馬條TAB等產品的焊接.

HOT BAR

The hot wire is widely used in welding, solder reflow soldering. The use of temperature control and time control in stages to meet the different needs of the welding, such as: LCD, touch screen, such as pressing the flat cable bonding and ACF bonding, relays, printers, optical and other hot-pressing bonding resin, cell phones, digital cameras use CCD, CMOS the solder joint, computer, USB, camera, etc. within the flat FPC cable solder joint, the hard disk (HDD), such as solder wire welding and the DVD, AV equipment, such as manufacturing.

1, the use of advanced temperature control system control segment, given the flexibility to set the temperature state of the paragraphs. Temperature and time parameters can be controlled accurately.
2, the stability of the rapid warming, local transient heating can be a good way to curb the surrounding heat-affected components.
3, the closed-loop thermocouple feedback online to improve temperature control accuracy.
4, welding pressure, welding time, welding temperature to precisely regulate.
5, can store 20 groups of welding parameters very convenient replacement products.
6, more than one-spot, high efficiency, consistency, and high strength welding, solder joint appearance, simple operation.
7, welding the first long service life.

Especially suitable for FPC TO PCB / zebra paper TO FPC / HSC TO LCD / TAB TO PCB Article zebra TAB welding products.
