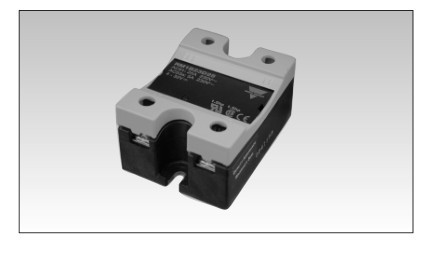

瑞士佳樂固態繼電器 RM系列
地區城市：上海市 更新時間：2013-5-13 18:03:19
聯 系 人： 朱玨 有效期限：2014-5-13 10:39:45
電子信箱：weed890119@163.com 聯系電話：021-61478898
瑞士佳樂RM1A40D50 ☆適用于交流控制電阻負載，內置壓敏開關。 ①尺寸：58.2*44.8*28.8 ②控制電壓范圍：4-32VDC 20-280VDC 22-48VDC ③額定電流：25A、50A、75A、100A ④工作電壓：24-265Vrms 42-440Vrms 42-530Vrms 42-660Vrms ⑤工作溫度：-40－80度 ⑥認證/標準：CE-UL-CSA。
RM1B23D100\RM1B23D25\RM1B23D50 RM1B23D75\ RM1B40D100\RM1B40D25
型號 負載電流 負載電壓 電壓
RM1A23D25 25A 24-265VAC 4-32VDC
RM1A23D50 50A 24-265VAC 4-32VDC
RM1A23D75 75A 24-265VAC 4-32VDC
RM1A23D100 100A 24-265VAC 4-32VDC
RM1A23A25 25A 24-265VAC 20-280VAC/22-48VDC
RM1A23A50 50A 24-265VAC 20-280VAC/22-48VDC
RM1A23A75 75A 24-265VAC 20-280VAC/22-48VDC
RM1A23A100 100A 24-265VAC 20-280VAC/22-48VDC
RM1A40D25 25A 42-440VAC 4-32VDC
RM1A40D50 50A 42-440VAC 4-32VDC
RM1A40D75 75A 42-440VAC 4-32VDC
RM1A40D100 100A 42-440VAC 4-32VDC
RM1A40A25 25A 42-440VAC 20-280VAC/22-48VDC
RM1A40A50 50A 42-440VAC 20-280VAC/22-48VDC
RM1A40A75 75A 42-440VAC 20-280VAC/22-48VDC
RM1A40A100 100A 42-440VAC 20-280VAC/22-48VDC
RM1A48D25 25A 42-530VAC 4-32VDC
RM1A48D50 50A 42-530VAC 4-32VDC
RM1A48D75 75A 42-530VAC 4-32VDC
RM1A48D100 100A 42-530VAC 4-32VDC
RM1A48A25 25A 42-530VAC 20-280VAC/22-48VDC
RM1A48A50 50A 42-530VAC 20-280VAC/22-48VDC
RM1A48A75 75A 42-530VAC 20-280VAC/22-48VDC
RM1A48A100 100A 42-530VAC 20-280VAC/22-48VDC
RM1A60D25 25A 42-660VAC 4-32VDC
RM1A60D50 50A 42-660VAC 4-32VDC
RM1A60D75 75A 42-660VAC 4-32VDC
RM1A60D100 100A 42-660VAC 4-32VDC
RM1A60A25 25A 42-660VAC 20-280VAC/22-48VDC
RM1A60A50 50A 42-660VAC 20-280VAC/22-48VDC
RM1A60A75 75A 42-660VAC 20-280VAC/22-48VDC
RM1A60A100 100A 42-660VAC 20-280VAC/22-48VDC
RM1A60M50AHS03K 30A 42-660VAC 5-24VDC/AC
RM1A60A5040AHS04K 40A 42-660VAC 5-24VDC/AC
RM1A23M25 25A 24-265VAC 5-24VDC/AC
RM1A40M25 25A 42-440VAC 5-24VDC/AC
RM1A48M25 25A 42-530VAC 5-24VDC/AC
RM1A60M25 25A 42-660VAC 5-24VDC/AC
RM1A23M50 50A 24-265VAC 5-24VDC/AC
RM1A40M50 50A 42-440VAC 5-24VDC/AC
RM1A48M50 50A 42-530VAC 5-24VDC/AC
RM1A60M50 50A 42-660VAC 5-24VDC/AC
RM1A23M75 75A 24-265VAC 5-24VDC/AC
RM1A40M75 75A 42-440VAC 5-24VDC/AC
RM1A48M75 75A 42-530VAC 5-24VDC/AC
RM1A60M75 75A 42-660VAC 5-24VDC/AC
RM1A23M100 100A 24-265VAC 5-24VDC/AC
RM1A40M100 100A 42-440VAC 5-24VDC/AC
RM1A48M100 100A 42-530VAC 5-24VDC/AC
RM1A60M100 100A 42-660VAC 5-24VDC/AC …型號，如需其他型號，可來電咨詢！
