ADDA散熱風扇AA1282HB-AW

信息類型：庫存信息　　所屬類別：軸流風機
地區城市：廣東省－深圳市更新時間：2013-7-15 22:31:12
聯系人：李有效期限：2014-7-9 9:49:06
公司名稱：深圳市旺景科技有限公司
電子信箱：sam@smartfan.com.cn 　　聯系電話：86-755-83286865

詳細描述

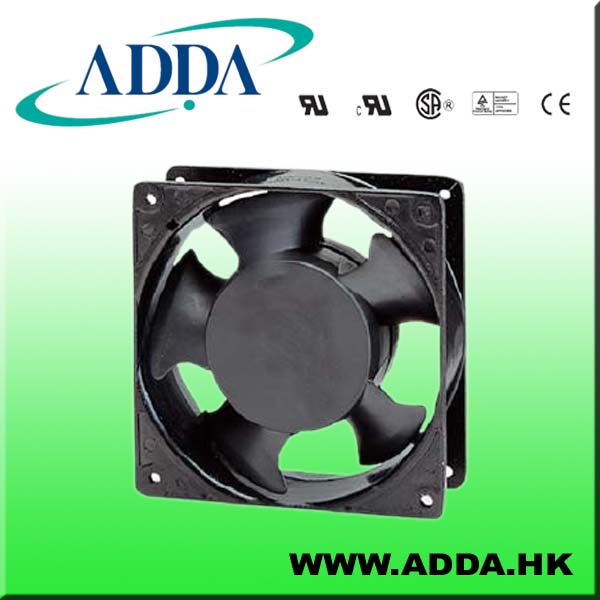

ADDA 120X120X38mm 115v/230v axial fan AA12038al
1. frame size(mm):120X120X38
2. bearing type:ball bearing
3. max air flow:105.1CFM
4. max noise: 46dB

ADDA 120X120X38mm 115v/230v axial fan AA12038al

1	Frame size(mm)	120X120X38
2	Bearing type	ball bearing
3	Rated voltage	115V/50,60HZ, 230V/50,60HZ
4	Rated speed	1000~2700RPM
5	Max air flow	105.1CFM
6	maxiam pressure:	8.27mmAq
7	Maxiam noise	46.3dBA
8	Functions	by impedance,FG
9	safety approvals	CE,TUV, UL,cUL
10	Electric Strength	5mA max at 1500VAC for 1 min between lead wire and frame
11	Insulation Resistance	10M ohm between lead wire and frame(DC 500V)
12	Life Expectancy(Ball bearing)	70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
13	Life Expectancy(Hypro bearing)	>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
14	Operation Temperature	-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F)
15	Storage Temperature	-40~75 degree C(-40~167 degree F)
16	Protection	Motor protection and polarity protection
17	Lead wire	UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26
18	Plastic Material	Motor protection and polarity protection

ADDA AA12038al axial fan
1. frame size(mm):120X120X38
2. bearing type:ball bearing
3. max air flow:105.1CFM
4. max noise: 46dB

ADDA AA12038al axial fan

1	Frame size(mm)	120X120X38
2	Bearing type	ball bearing
3	Rated voltage	115V/50,60HZ, 230V/50,60HZ
4	Rated speed	1000~2700RPM
5	Max air flow	105.1CFM
6	maxiam pressure:	8.27mmAq
7	Maxiam noise	46.3dBA
8	Functions	by impedance,FG
9	safety approvals	CE,TUV, UL,cUL
10	Electric Strength	5mA max at 1500VAC for 1 min between lead wire and frame
11	Insulation Resistance	10M ohm between lead wire and frame(DC 500V)
12	Life Expectancy(Ball bearing)	70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
13	Life Expectancy(Hypro bearing)	>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
14	Operation Temperature	-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F)
15	Storage Temperature	-40~75 degree C(-40~167 degree F)
16	Protection	Motor protection and polarity protection
17	Lead wire	UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26
18	Plastic Material	Motor protection and polarity protection
