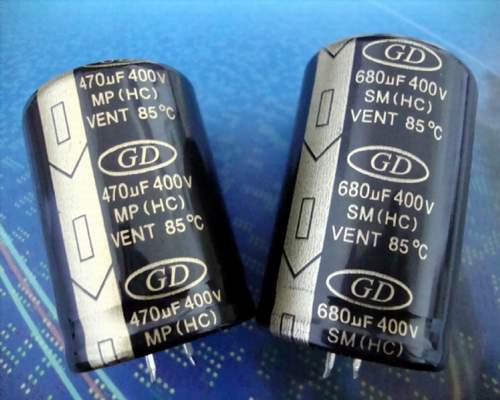

HP 焊針型標準品
SNAP-IN TERMINAL TYPE， STANDARD SERIES
低中高壓，焊針式標準品，可用於大螢?zāi)徊孰姟⒆冾l空調、音響等電子線路中。
Low,medium and high voltage ,standard,
Use in big screen color-TV ,frequency conversion air
conditioner audio circuits,ets.
Specifications
No Item Performance
1 使用溫度範圍
Operating Temperature Range -40℃ to +85℃ -25℃ to +85℃
2 定格電壓範圍 Rated Working Voltage Range 10~100V.DC 160~450V.DC
3 靜電容量範圍
Capacitance Tolerance 470－68000µF 47-2700µF
4 靜電容量容許差
Capacitance Tolerance ±20%(at+200
C,120HZ)
5 洩漏電流
Leakage Current I≤0.03CV（µA） or 3mA（whichever is greater） after five minutes
6
損失角
Dissipation Factor(tanδ)
（120Hz\+20℃）
Working Voltage (V) 10 16 25 35 50 63 80 100 160~400 450
tanδ max. 0.55 0.50 0.45 0.40 0.35 0.30 0.25 0.20 0.15 0.25
7
低溫度特性（at 120 Hz）
Characteristics at low temperature
（Impedance ratio at 120Hz）
Working Voltage (V) 10~250 350~400 450
Z-25℃/+20℃ 3 4 12
Z-40/℃+20℃ 12 - -
8 高溫負荷特性
High Temperature Loading
After 2000hrs. application of DC rated working voltage at +85℃.The capacitor shall meet
the following limits: Post test requirements at + 20℃
Leakage current ≤ the Initial specified value
Capacitance change ≤±20% of initial measured value
Dissipation Factor(tanδ) ≤200% of initial specified value
9 高溫?zé)o負荷特性
Shelf Life
After 1000hrs. Application of DC no rated working voltage at +85℃,The capacitor shall
meet the following limits: Post test requirements at + 20℃
Leakage current ≤200% of initial specified value
Capacitance change ≤±20% of initial measured value
Dissipation Factor(tanδ) ≤200% of initial specified value
Diagram of Dimensions Unit (mm)
Multiplier for ripple current 紋波電流補正係數
Frequency Coefficient 周波數係數 Temperature Coefficient 周圍溫度係數
Frequency（Hz）
μF 50（60）120 1K 10K 50K~100K
10<CAP≤100 0.8 1 1.36 1.48 1.53
100<CAP≤1000 0.8 1 1.25 1.35 1.38
1000<CAP 0.8 1 1.17 1.25 1.28
temperature（℃）
Coefficient
85 ≤65
coefficient 1.0 1.3
6
