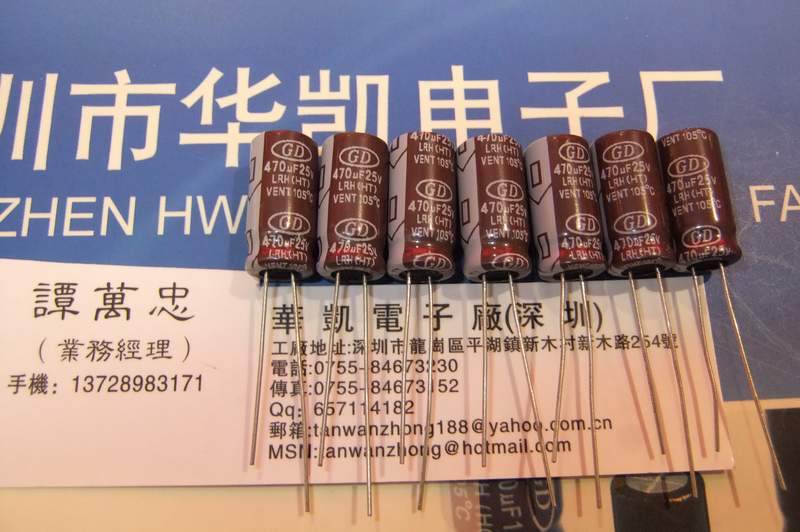

LRH series 高頻率低阻抗品
1. 高頻率低阻抗，壽命3000~5000小時，1050C
Low impedance for high frequency , Life time:3000 ~5000hours at 1050C
2. 適用於電腦主機板，高保真音箱，高分辨數碼彩電等電子線路中
Used in main board , hi-fi acoustics ,numeral color-TV circuits etc.
Specifications
No. Item Performance
1 使用溫度範圍
Operating Temperature Range -40 to +1050C -25 to +1050C
2 定格電壓範圍
Rated Working Voltage Range 6.3-100V.DC 160~450V.DC
3 靜電容量範圍
Capacitance Tolerance 0.47-15000µF 0.47-470µF
4 靜電容量容許差
Capacitance Tolerance ±20%(at+20 0C,120Hz)
5 洩漏電流
Leakage Current I ≤0.01CV or3(µA) after three minutes
Application of rated working voltage +20℃ I ≤0.03CV after three minutes
Application of rated working voltage +20℃
6 損失角
Dissipation Factor(tanδ)
（120Hz\+20℃）
Working Voltage（V） 6.3 10 16 25 35 50 63 100 160~250 350,400 450
tanδ max. 0.18 0.16 0.14 0.12 0.10 0.09 0.08 0.08 0.12 0.15 0.17
For capacitance value ＞1000µF, add 0.02 per another 1000µF
7 低溫度特性（at 120 Hz）
Characteristics at low temperature （Impedance ratio at 120Hz）
Working Voltage（V） (V) 6.3 10 16 25~50 63,100 160 200 250 350 400 450
Z-25℃/+20℃ 4 3 3 3 2 2 2 3 5 5 6
Z-40/℃+20℃ 8 6 4 3 3 3 6 6 6 6 -

8 高溫負荷特性
High Temperature Loading Application of DC rated working voltage at +105℃,
The capacitor shall meet the following limits:
Post test requirements at + 20℃
Leakage current ≤ the Initial specified value
Capacitance change ≤±25% of initial measured value
Dissipation Factor(tanδ) ≤200% of initial specified value

9 高溫無負荷特性
Shelf Life After 1000hrs. Application of DC no rated working voltage at +105℃,The capacitor shall meet the following limits: Post test requirements at + 20℃
Leakage current ≤200% of initial specified value
Capacitance change ≤±20% of initial measured value
Dissipation Factor(tanδ) ≤200% of initial specified value

Multiplier for ripple current紋波電流補正係數
Frequency Coefficient 周波數係數
μF µF Frequency 60（50）Hz 120 Hz 400Hz 1K Hz 10K Hz 50~100K Hz
CAP≤10 0.47 0.59 0.76 0.85 0.97 1.00
10<CAP≤100 0.52 0.62 0.80 0.89 0.97 1.00
100<CAP≤1000 0.58 0.72 0.84 0.90 0.98 1.00
1000<CAP 0.63 0.78 0.87 0.91 0.98 1.00
Temperature Coefficient周圍溫度係數
Coefficient temperature（℃） 105 85 ≤65
coefficient 1.0 1.7 2.1
