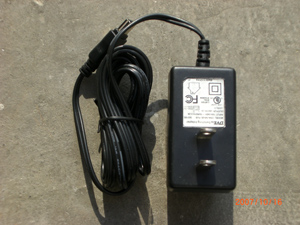

插墻式適配器
所屬類別：電源應用分類>>充電機(器)
電子信箱：swlu1980@163.com
聯系電話：021-54296992 54302191轉606
聯 系 人：盧紹偉
更新時間：2011-5-30 15:50:50
15W Series DSA-15P
Universal Input Adapter Switching Power Supply
Features
Meet CEC Low Power Consumption
Class B EMI ＜250ua Leakage
Applications
Computer Communication Consumer
Safety Approvals(60950+60065)
UL/CUL BSMI CB PSE
CCC SAA/C-Tick T-License GS
Output Specifications
|
MODEL |
INPUT Voltage |
OUTPUT | ||||
|
Range |
Frequancy |
Vdc |
Reg. |
A(max) |
W(max) | |
|
DSA-15P-05 b yz |
100-240V |
50/60Hz0.5A |
5.0-7.5 |
±5% |
2.5 |
13.0 |
|
DSA-15P-12 b yz |
100-240V |
50/60Hz0.5A |
9.0-13.5 |
±5% |
1.5 |
15.0 |
|
|
|
|
|
|
|
|
DSA-15P Characteristics
AC Input Voltage:90 to 264VAC Operation Temperature:0 to 40℃
AC Input Frequancy:47 TO 63 Hz Storage Temperature:-25 to +75℃
AC Input Current(Full Load) MTBF:50000-100000 by option
0.5Arms(120VAC) (80%max load,220VAC,25℃)
0.3Arms(240VAC)
Leakage Current:Less than 250ua Emissions
Dielectric Withstand(Hi-pot):
3000VAC,1 min,10ma FCC Class B
Hold-up Time(Full Load) EN 55022 B
5ms 120VAC EN 55013 B
20ms 240VAC
Over current Protection
Short Circuit,Auto Restart
AC Mating Connector
Cord,IEC EN 60320/C7(2 wire)
