HWA KAI ELECTRONIC FACTORY

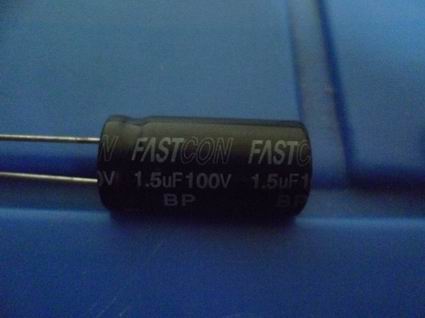

BP series Bi-Polarized+85℃ wide temperature range standard無極性+85℃寬溫度品
1. 適用于極性反轉(zhuǎn)回路，例如：信號交連或HI-FI高級音 響設(shè)備如喇叭等。
NP series capacitors are suitable for crossover network for HI-FI equipment’s and speakers, etc.
2. 具容量誤差小，頻率響應高之特質(zhì)。
Have excellent frequency characteristic and small deviation of Capacitance.
Specifications
No. Item Performance
1 使用溫度范圍
Operating Temperature Range -40℃ to +105℃
2 定格電壓范圍
Rated Working Voltage Range 6.3-100V.DC
3 靜電容量范圍
Capacitance Tolerance 0.1－2200µF
4 靜電容量容許差
Capacitance Tolerance ±20% (at+25℃,120Hz)
5 泄漏電流
Leakage Current I≤0.03CV or 3（µA） after five minutes
6 損失角
Dissipation Factor(tanδ) （120Hz\＋25℃）
Working Voltage（v） 6.3 10 16 25 35 50 63 100
tanδ max. 0.25 0.25 0.20 0.15 0.15 0.13 0.10 0.12

7 溫度特性（at 120 Hz）
Characteristics at low temperature （stability at 120Hz）
Working Voltage (V) 6.3 10 16 25 35 50 63 100
-25℃/+20℃ 4 3 2 2 2 2 2 2
-40/℃+20℃ 8 6 4 4 3 3 3 3

8 高溫負荷特性
High Temperature Loading After2000 hrs. application of DC rated working voltage at +105℃.
The capacitor shall meet the following limits:
Post test requirements at + 25℃
Leakage current ≤ the Initial specified value
Capacitance change ≤±20 % of initial measured value
Dissipation Factor(tanδ) ≤200% of initial specified value

9 高溫無負荷特性
Shelf Life After storage for 1000hrs. at+105℃ with no voltage applied.
Post test requirements at+25℃
Same limits for high temperature lading.
