臺灣協禧電機 12025散熱風扇
地區城市：廣東省 －深圳市 更新時間：2013-6-24 21:32:31
聯 系 人： 李 有效期限：2014-6-20 11:27:49
公司名稱：深圳市旺景科技有限公司
電子信箱：sam@smartfan.com.cn 聯系電話：86-755-83286865

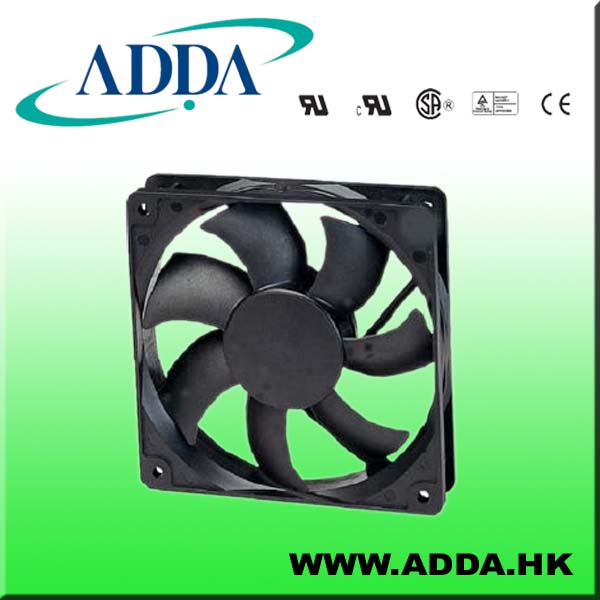

ADDA 120X120X25mm 115v/230v cooling fan AA12025GL
1. frame size(mm):120X120X25
2. bearing type:ball,sleeve bearing
3. max air flow:75CFM
4. max noise:42dBA
ADDA 120X120X25mm 115v/230v cooling fan AA12025GL
|
1 |
Frame size(mm) |
120X120X25 |
|
2 |
Bearing type |
ball bearing,sleeve bearing |
|
3 |
Rated voltage |
115V/50,60HZ, 230V/50,60HZ |
|
4 |
Rated speed |
2000~2200RPM |
|
5 |
Max air flow |
75CFM |
|
6 |
maxiam pressure: |
3.26mmAq |
|
7 |
Maxiam noise |
42dBA |
|
8 |
Functions |
by IC, by IC with FG, by IC with RD |
|
9 |
safety approvals |
CE,TUV, UL,cUL |
|
10 |
Electric Strength |
1000VAC for 1 minute to base on UL-507 |
|
11 |
Insulation Resistance |
100M ohm between lead wire and frame(DC 500V) |
|
12 |
Life Expectancy(Ball bearing) |
70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
13 |
Life Expectancy(Hypro bearing) |
>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
14 |
Operation Temperature |
-10~80 degree C(+14~176 degree F) |
|
15 |
Storage Temperature |
-40~75 degree C(-40~167 degree F) |
|
16 |
Protection |
Motor protection and polarity protection |
|
17 |
Lead wire |
UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
|
18 |
Plastic Material |
Black PBT (UL94V-0) glass fiber |
ADDA 12025GL cooling fan
1. frame size(mm):120X120X25
2. bearing type:ball,sleeve bearing
3. max air flow:75CFM
4. max noise:42dBA
ADDA 12025GL cooling fan
|
1 |
Frame size(mm) |
120X120X25 |
|
2 |
Bearing type |
ball bearing,sleeve bearing |
|
3 |
Rated voltage |
115V/50,60HZ, 230V/50,60HZ |
|
4 |
Rated speed |
2000~2200RPM |
|
5 |
Max air flow |
75CFM |
|
6 |
maxiam pressure: |
3.26mmAq |
|
7 |
Maxiam noise |
42dBA |
|
8 |
Functions |
by IC, by IC with FG, by IC with RD |
|
9 |
safety approvals |
CE,TUV, UL,cUL |
|
10 |
Electric Strength |
1000VAC for 1 minute to base on UL-507 |
|
11 |
Insulation Resistance |
100M ohm between lead wire and frame(DC 500V) |
|
12 |
Life Expectancy(Ball bearing) |
70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
13 |
Life Expectancy(Hypro bearing) |
>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
14 |
Operation Temperature |
-10~80 degree C(+14~176 degree F) |
|
15 |
Storage Temperature |
-40~75 degree C(-40~167 degree F) |
|
16 |
Protection |
Motor protection and polarity protection |
|
17 |
Lead wire |
UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
|
18 |
Plastic Material |
Black PBT (UL94V-0) glass fiber |
