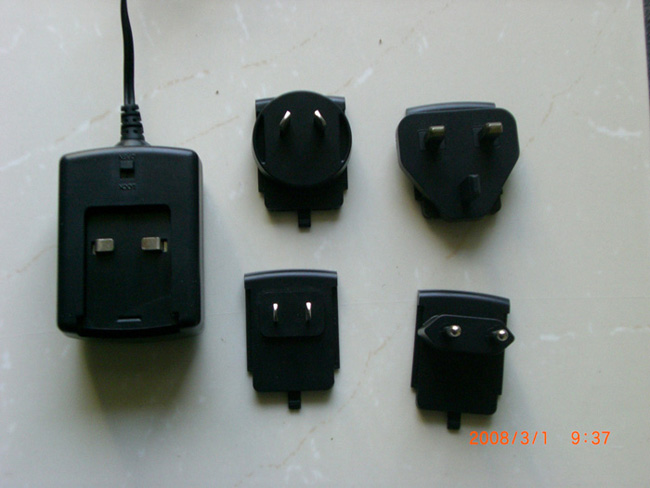

插墻式電源適配器（帶轉換頭）
所屬類別：電源產品分類>>開關電源(AC/DC)
電子信箱：swlu1980@163.com
聯系電話：021-54296992 54302191轉606
聯 系 人：盧紹偉
更新時間：2011-5-30 15:51:05
10W Series DSA-10P
Universal Input A dapter Switching Power Supply
Features
*Meet CEC (115VAC) *Low Power Consumption
*Class B EMI *＜250ua Leakage
Applications
*Computer *Communication *Consumer
Safety Approvals(60950)
*BSMI *UL/CUL *CCC *GS
*CB *TA *SAA
Safety Approvals (60065)
*CB *UL/CUL *CCC *GS
*SAA
Output Specifications
b=EU/UK/JP/KA/AU…(EU means European plug used,UK means British plug used,KA means…)
c=3 digit number which represents the output voltage in volt dividing by 10,from 2.5V to 13.0V by step of 0.1V
d=3 digit number which represents the output wattage in watt dividing by 10,up to 10W by step of 0.1W
|
MODEL |
INPUT Voltage |
OUTPUT | ||||
|
Range |
Frequancy |
Vdc |
Reg. |
A(max) |
W(max) | |
|
DSA-10P-03 cd |
AC 100-240V |
50/60Hz0.3A |
2.5-4.0 |
±10% |
2.86 |
8.6 |
|
DSA-10P-05 cd |
AC 100-240V |
50/60Hz0.3A |
4.1-6.0 |
±5% |
2.44 |
10 |
|
DSA-10P-07 cd |
AC 100-240V |
50/60Hz0.3A |
6.1-8.0 |
±5% |
1.67 |
10 |
|
DSA-10P-12 cd |
AC 100-240V |
50/60Hz0.3A |
8.1-13.0 |
±5% |
1.25 |
10 |
|
DSA-10P-03 b cd |
AC 100-240V |
50/60Hz0.3A |
2.5-4.0 |
±10% |
2.86 |
8.6 |
|
DSA-10P-05 bcd |
AC 100-240V |
50/60Hz0.3A |
4.1-6.0 |
±5% |
2.44 |
10 |
|
DSA-10P-07 bcd |
AC 100-240V |
50/60Hz0.3A |
6.1-8.0 |
±5% |
1.67 |
10 |
|
DSA-10P-12 bcd |
AC 100-240V |
50/60Hz0.3A |
8.1-13.0 |
±5% |
1.25 |
10 |
DSA-10P Characteristics
AC Input Voltage Storage Temperature
90 to 264 VAC -20 to +60℃
AC Input Frequancy MTBF
47 to 63 Hz 50000-100000 by option
AC Input Current(Full Load) (80%maximum load at 25℃)
0.3Arms(100-240 V A C ) Emissions
Leakage Current FCC Class B
Less than 250μA,(Nominal voltage) EN 55013
EN 55022
Dielectric Withstand(Hi-pot) Immunity
3000VAC,1min,10mA 61000-4-2,Level 3
Hold-up Time(Full Load) 61000-4-3,Level 2
5Ms minimum(100-240 V A C) 61000-4-4,Level 2
Over current Protection 61000-4-5,Level 3
Short Circuit,Auto Restart 61000-4-6,Level 2
Operation Temperature 61000-4-11
0 to 40℃
