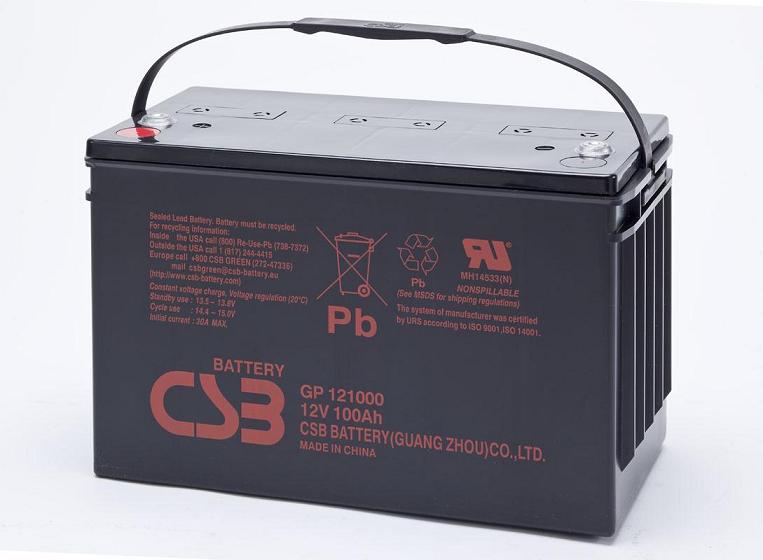

CSB電池(CSB蓄電池) GP121000
12V 100Ah
GP 121000 is a general purpose battery up to 5 years in standby service or more than 260 cycles at 100% discharge in cycle service.
As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.

規格書
局數 6
電壓值 12V
安培數 100Ah @ 20 Hr-Rate to 1.75V Per Cell @ 25℃(77℉)
重量(kg)  Approx. 31.2 Kg (68.78 lbs)
最大放電電流5秒(A)  800A (5 Sec)
內阻(mΩ)  Approx. 4.5 mΩ
溫度工作范圍  Discharge：-15℃~50℃(5°F~122°F)
Charge：-15℃~40℃(5°F~104°F)
Storage：-15℃~40℃(5°F~104°F)
一般使用溫度工作范圍  25℃±3℃(77°F±5°F)
浮充使用充電條件  13.5 to 13.8 VDC/Unit Average at 25℃ (77°F)
安培數/只  30A
循環壽命測試條件  14.4 to 15.0 VDC/Unit Average at 25℃(77°F)
單一放電條件  CSB Batteries can be stored for more than 6 months at 25℃(77°F). Please charge batteries before using. For higher temperatures the time interval will be shorter.
端子  I2-Thread lead alloy recessed terminal to accept M6/M8 bolt
電槽組材質  Polypropylene(UL 94-V0/File E50955)*Flammability resistance of (UL 94-HB/File E216959) can be available upon request.
