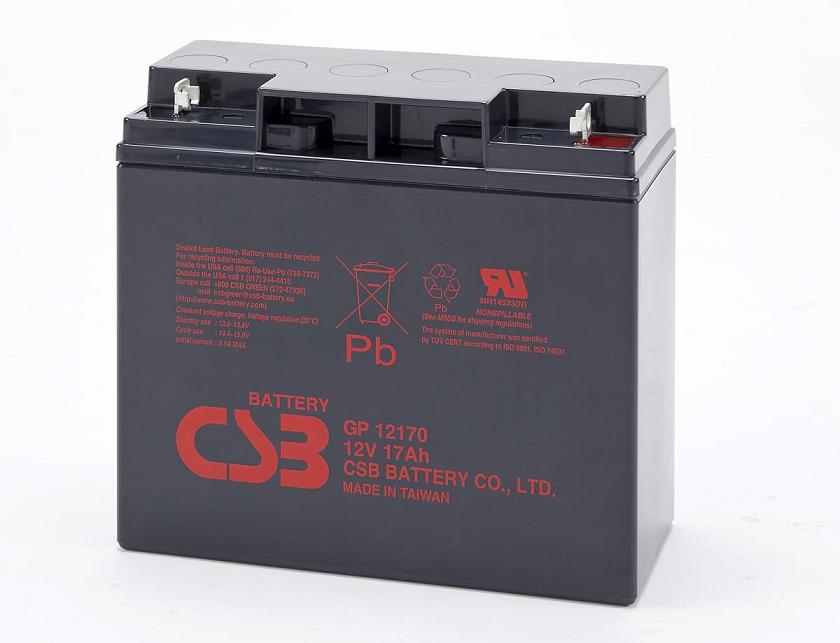

CSB電池(CSB蓄電池) GP12170
12V 17Ah
GP 12170 is a general purpose battery up to 5 years in standby service or more than 260 cycles at 100% discharge in cycle service.
As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.

規格書
局數 6
電壓值 12V
安培數 17Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)
重量  Approx. 5.5 kg. (12.13 lbs.)
最大放電電流5秒(A)  230 A (5sec.)
內阻(mΩ)  Approx. 16 mΩ
溫度工作范圍  Discharge：-15℃~50℃(5°F~122°F)
Charge：-15℃~40℃(5°F~104°F)
Storage：-15℃~40℃(5°F~104°F)
一般使用溫度工作范圍  25°C ± 3°C (77°F ± 5°F)
浮充使用充電條件  13.5 to 13.8 VDC/unit Average at 25°C (77°F)
安培數/只  5.1A
循環壽命測試條件  14.4 to 15.0 VDC/unit Average at 25°C (77°F)
單一放電條件  CSB Batteries can be stored for more than 6 months at 25°C (77°F) Please charge batteries before using. For higher temperatures the time interval will be shorter.
端子  B1/B3-L terminal to accept M5 nut & bolt
電槽組材質  ABS(UL94-HB/FileE50263)*Flammability resistance of(UL94-V0/File E54297) can be available upon request.
