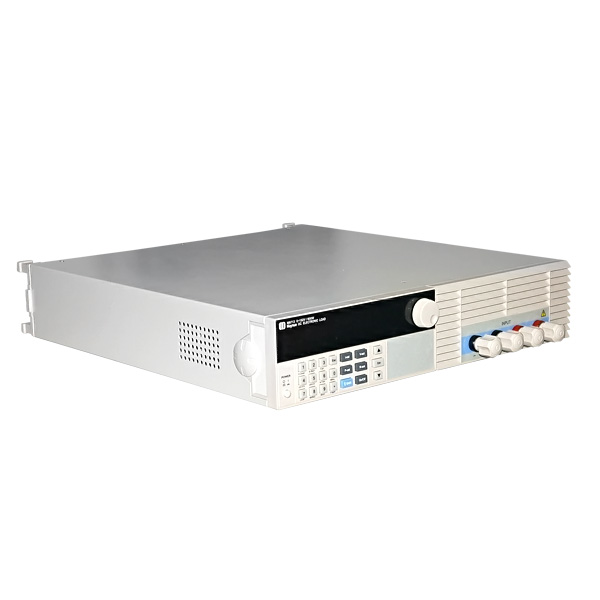

直流可編程電子負載M9713/9713B/9714/9714B(600-1200W)
所屬類別：電源配套分類>>測試儀器
電子信箱：993752413@qq.com
聯系電話：025-52811885
聯 系 人：閔
更新時間：2012-3-23 15:39:37
M9713、M9713B可編程直流電子負載是美爾諾電子公司設計制造的新一代直流電子負載，采用高性能芯片,高速,高精度設計,提供0.1mV,0.01mA的解析度(基本精度為0.03%， 基本電流上升速度
主要特點
恒流， 恒阻， 恒壓，恒功率， 恒流+恒壓， 恒阻+恒壓， 六種高速動作模式；
過流， 過壓， 過功率， 過熱，極性反接保護；
高亮度，真空，VFD屏， 雙排，四路同步顯示；
根據溫度變化，無極伺服， 智能風扇系統；
電路軟啟動時間設定， 可根據設定電壓值帶載；
電池測試及短路功能；
提供動態測試，上升下降斜率設定；
支持外部出發輸入， 輸出；
提供外部電流波形監視端子；
支持遠端電壓補償， 多個數據存儲；
開機自檢， 軟件校正， 標準儀器架設計；
支持 RS232, RS485, USB通訊。
|
Model型號 |
M9713 | ||
|
Input Rating 額定輸入 |
Power |
600W | |
|
Current |
0 | ||
|
Voltage |
0-150V | ||
|
CC Mode 定電流模式 |
Range |
0 |
0 |
|
Resolution |
1mA |
10mA | |
|
Accuracy |
0.05%+0.05%FS |
0.1%+0.05%FS | |
|
CV Mode 定電壓模式 |
Range |
0.1-19.999V |
0.1-150V |
|
Resolution |
1mV |
10mV | |
|
Accuracy |
0.03%+0.02%FS |
0.03%+0.02%FS | |
|
CR Mode定電阻模式 （當輸入電壓和電流值≥滿量程的10%） |
Range |
0.03Ω-10K |
0.03Ω-5K |
|
Resolution |
16 bit |
16 bit | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
CW Mode定功率模式 （當輸入電壓和電流值≥滿量程的10%） |
Range |
0-600W |
0-600W |
|
Resolution |
1mW |
10mW | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
V Measurement 電壓測量值 |
Voltage |
0-19.999V |
0-150V |
|
Resolution |
1mV |
10mV | |
|
Accuracy |
0.015%+0.03%FS |
0.015%+0.03%FS | |
|
I Measurement 電流測量值 |
Current |
0 |
0 |
|
Resolution |
0.1mA |
1mA | |
|
Accuracy |
0.05%+0.05%FS |
0.1%+0.08%FS | |
|
W Measurement功率測量值 （當輸入電壓和電流值≥滿量程的10%） |
Watt |
100W |
600W |
|
Resolution |
1mW |
10mW | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
Battery Measurement 電池測試功能：Battery Input: 0.1-150V; Max. Measurement: Capacity=999AH; Resolution=0.1mA; Time Range=1S-16H | |||
|
Dynamic Measurement 動態測試功能：Transition List: 0-25kHZ; 2.5A/uS; T1&T2:60uS-999S; Accuracy: + 15% offset+10% FS | |||
|
CC soft-startup Time 電流軟啟動時間：1 mS; 2 mS; 5mS; 10mS; 20 mS; 50 mS; 100 mS; 200 mS 500mS;1000mS Accuracy: + 15% offset+10% FS | |||
|
Short Circuit 短路功能 |
Current(CC) |
≒13.2A |
≒132A |
|
Voltage(CV) |
0V | ||
|
Resistance(CR) |
≒13mΩ | ||
|
Temperature 溫度 |
Operating |
0～ | |
|
Nonoperating |
– | ||
|
Dimension 尺寸 |
W*H*D(mm) |
103.5*428*453.5 | |
|
Weight 重量 |
Kg |
17.6 | |
|
Model型號 |
M9713B | ||
|
Input Rating 額定輸入 |
Power |
600W | |
|
Current |
0 | ||
|
Voltage |
0-500V | ||
|
CC Mode 定電流模式 |
Range |
0 |
0 |
|
Resolution |
0.1mA |
1mA | |
|
Accuracy |
0.03%+0.05%FS |
0.03%+0.05%FS | |
|
CV Mode 定電壓模式 |
Range |
0.1-19.999V |
0.1-500V |
|
Resolution |
1mV |
10mV | |
|
Accuracy |
0.03%+0.02%FS |
0.03%+0.05%FS | |
|
CR Mode定電阻模式 （當輸入電壓和電流值≥滿量程的10%） |
Range |
0.03Ω-10K |
0.03Ω-5K |
|
Resolution |
16 bit |
16 bit | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
CW Mode定功率模式 （當輸入電壓和電流值≥滿量程的10%） |
Range |
0-600W |
0-600W |
|
Resolution |
1mW |
10mW | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
V Measurement 電壓測量值 |
Voltage |
0-19.999V |
0-500V |
|
Resolution |
1mV |
10mV | |
|
Accuracy |
0.015%+0.03%FS |
0.015%+0.05%FS | |
|
I Measurement 電流測量值 |
Current |
0 |
0 |
|
Resolution |
0.01mA |
0.1mA | |
|
Accuracy |
0.03%+0.05%FS |
0.03%+0.08%FS | |
|
W Measurement功率測量值 （當輸入電壓和電流值≥滿量程的10%） |
Watt |
100W |
600W |
|
Resolution |
1mW |
10mW | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
Battery Measurement 電池測試功能：Battery Input: 0.1-150V; Max. Measurement: Capacity=999AH; Resolution=0.1mA; Time Range=1S-16H | |||
|
Dynamic Measurement 動態測試功能：Transition List: 0-25kHZ; 2.5A/uS; T1&T2:60uS-999S; Accuracy: + 15% offset+10% FS | |||
|
CC soft-startup Time 電流軟啟動時間：1 mS; 2 mS; 5mS; 10mS; 20 mS; 50 mS; 100 mS; 200 mS 500mS;1000mS Accuracy: + 15% offset+10% FS | |||
|
Short Circuit 短路功能 |
Current(CC) |
≒3.3A |
≒33A |
|
Voltage(CV) |
0V | ||
|
Resistance(CR) |
≒100mΩ | ||
|
Temperature 溫度 |
Operating |
0～ | |
|
Nonoperating |
– | ||
|
Dimension 尺寸 |
W*H*D(mm) |
103.5*428*453.5 | |
|
Weight 重量 |
Kg |
17.6 | |
|
Model型號 |
M9714 | ||
|
Input Rating 額定輸入 |
Power |
1200W | |
|
Current |
0 | ||
|
Voltage |
0-150V | ||
|
CC Mode 定電流模式 |
Range |
0 |
0 |
|
Resolution |
1mA |
10mA | |
|
Accuracy |
0.05%+0.05%FS |
0.1%+0.05%FS | |
|
CV Mode 定電壓模式 |
Range |
0.1-19.999V |
0.1-150V |
|
Resolution |
1mV |
10mV | |
|
Accuracy |
0.03%+0.02%FS |
0.03%+0.02%FS | |
|
CR Mode 定電阻模式（當輸入電壓和電流值≥滿量程的10%） |
Range |
0.3Ω-10K |
0.3Ω-5K |
|
Resolution |
16 bit |
16 bit | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
CW Mode 定功率模式（當輸入電壓和電流值≥滿量程的10%） |
Range |
0-1200W |
0-1200W |
|
Resolution |
1mW |
10mW | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
V Measurement 電壓測量值 |
Voltage |
0-19.999V |
0-150V |
|
Resolution |
1mV |
10mV | |
|
Accuracy |
0.015%+0.03%FS |
0.015%+0.03%FS | |
|
I Measurement 定電流模式 |
Current |
0 |
0 |
|
Resolution |
0.1mA |
1mA | |
|
Accuracy |
0.05%+0.05%FS |
0.1%+0.1%FS | |
|
W Measurement 功率測量值（當輸入電壓和電流值≥滿量程的10%） |
Watt |
100W |
1200W |
|
Resolution |
1mW |
10mW | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
Battery Measurement 電池測試功能：Battery Input: 0.1-150V; Max. Measurement: Capacity=999AH; Resolution=0.1mA; Time Range=1S-16H | |||
|
Dynamic Measurement 動態測試功能：Transition List: 0-25kHZ; 2.5A/uS; T1&T2:60uS-999S; Accuracy: + 15% offset+10% FS | |||
|
CC soft-startup Time 電流軟啟動時間：1 mS; 2 mS; 5mS; 10mS; 20 mS; 50 mS; 100 mS; 200 mS 500mS;1000mS Accuracy: + 15% offset+10% FS | |||
|
Short Circuit 短路功能 |
Current(CC) |
≒26.4A |
≒264A |
|
Voltage(CV) |
0V | ||
|
Resistance(CR) |
≒7mΩ | ||
|
Temperature 溫度 |
Operating |
0～ | |
|
Nonoperating |
– | ||
|
Dimension 尺寸 |
W*H*D(mm) |
103.5*428*453.5 | |
|
Weight 重量 |
Kg |
17.6 | |
|
Model型號 |
M9714B | ||
|
Input Rating 額定輸入 |
Power |
1200W | |
|
Current |
0 | ||
|
Voltage |
0-500V | ||
|
CC Mode 定電流模式 |
Range |
0 |
0 |
|
Resolution |
0.1mA |
1mA | |
|
Accuracy |
0.03%+0.05%FS |
0.03%+0.05%FS | |
|
CV Mode 定電壓模式 |
Range |
0.1-19.999V |
0.1-500V |
|
Resolution |
1mV |
10mV | |
|
Accuracy |
0.03%+0.02%FS |
0.03%+0.05%FS | |
|
CR Mode定電阻模式 （當輸入電壓和電流值≥滿量程的10%） |
Range |
0.03Ω-10K |
0.03Ω-5K |
|
Resolution |
16 bit |
16 bit | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
CW Mode定功率模式 （當輸入電壓和電流值≥滿量程的10%） |
Range |
0-1200W |
0-1200W |
|
Resolution |
1mW |
10mW | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
V Measurement 電壓測量值 |
Voltage |
0-19.999V |
0-500V |
|
Resolution |
1mV |
10mV | |
|
Accuracy |
0.015%+0.03%FS |
0.015%+0.05%FS | |
|
I Measurement 電流測量值 |
Current |
0 |
0 |
|
Resolution |
0.01mA |
0.1mA | |
|
Accuracy |
0.03%+0.05%FS |
0.03%+0.08%FS | |
|
W Measurement功率測量值 （當輸入電壓和電流值≥滿量程的10%） |
Watt |
100W |
1200W |
|
Resolution |
1mW |
10mW | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
Battery Measurement 電池測試功能：Battery Input: 0.1-150V; Max. Measurement: Capacity=999AH; Resolution=0.1mA; Time Range=1S-16H | |||
|
Dynamic Measurement 動態測試功能：Transition List: 0-25kHZ; 2.5A/uS; T1&T2:60uS-999S; Accuracy: + 15% offset+10% FS | |||
|
CC soft-startup Time 電流軟啟動時間：1 mS; 2 mS; 5mS; 10mS; 20 mS; 50 mS; 100 mS; 200 mS 500mS;1000mS Accuracy: + 15% offset+10% FS | |||
|
Short Circuit 短路功能 |
Current(CC) |
≒6.6A |
|
|
Voltage(CV) |
0V | ||
|
Resistance(CR) |
≒50mΩ | ||
|
Temperature 溫度 |
Operating |
0～ | |
|
Nonoperating |
– | ||
|
Dimension 尺寸 |
W*H*D(mm) |
103.5*428*453.5 | |
|
Weight 重量 |
Kg |
17.6 | |
