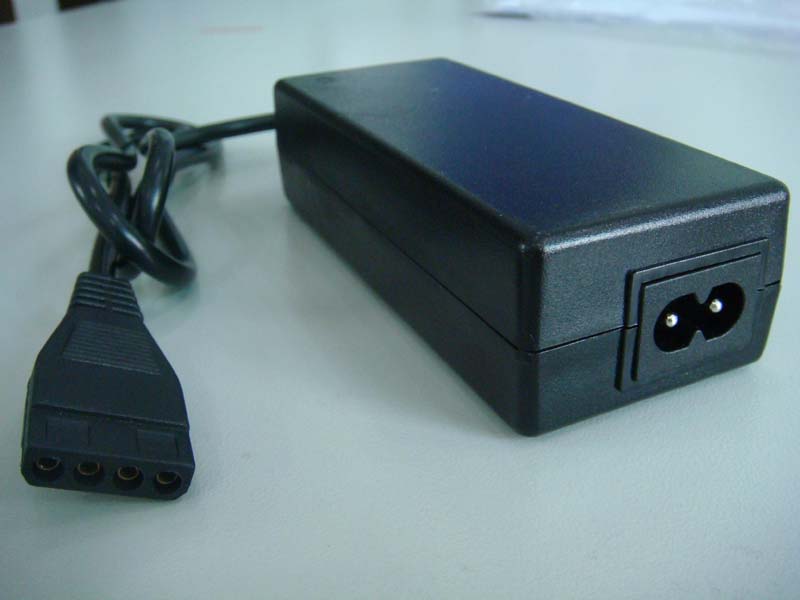

雙組輸出開關電源適配器
所屬類別：電源產品分類>>開關電源(AC/DC)
電子信箱：szq123@21cn.com
聯系電話：0755-21663531
聯 系 人：邵寶文
更新時間：2008/8/26 9:32:10
25W Series: Input Voltage:100-240Vac
Dual Output :5V/1.5A & 12V/1.5A
[Feature]：
Super Mini Size and Easy Protable]
[Light&Convenient Plug In]
[Application]:
[Digital Camera]
[CD-ROM HUB ADSL AP]
[Communication Terminals]
[Tester Machine]
[Any Protable Device or Machine]
[Input/Output Specifications]:
[Input Voltage]: AC 100-240V,50/60Hz
[Range Voltage]: AC 90--264V,47/63Hz
[Output Power]: 25W
[Output Voltage]: 5V-12V
[Over Voltage Protection]: 120%min
[Over Current Protection]: 120%min
[Short Protection]: Auto Recovery
[Load Regulation]: ±5%
[General Specifications]:
[Operating Temperature]: 0~40℃
[Storage Temperature]: -20~85℃
[Operating Relative Humidity]: 5~95%RH
[Withstanding Voltage]: AC 3000V(Min),5mA(Max)
[Insulation Resistance]: DC 500V 100MΩ(Min)
[Safety]: PSE UL/cUL GS CE CB FCC SAA C-Tick
