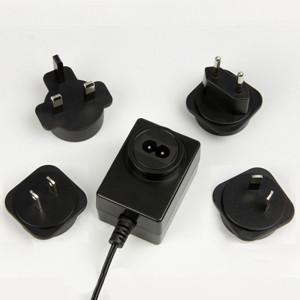

可換插頭,活動插頭開關電源適配器

G051DA-030150B-1 [3V@1.5A]
G051DA-033150B-1 [3.3V@1.5A]
G051DA-042070B-1 [4.2V@0.7]
G051DA-042120B-1 [4.2V@1.2A]
G051DA-045050B-1 [4.5V@0.5A]
G051DA-045100B-1 [4.5V@1A]
G051DA-050050B-1 [5V@0.5A]
G051DA-050100B-1 [5V@1A]
G051DA-060100B-1 [6V@1A]
G051DA-075080B-1 [7.5V@0.8A]
G051DA-090065B-1 [9V@0.65A]
G051DA-120050B-1 [12V@0.5A]
G051DA-150040B-1 [15V@0.4A]
G051DA-240020B-1 [24V@0.25A]

機械尺寸：長×寬×高＝59.5×43×34.5
輸入電壓[Input Voltage]: AC 100-240V,50/60Hz
輸入電壓范圍[Range Voltage]: AC 90--264V,47/63Hz
輸出功率[Output Power]: 5W
輸出電壓[Output Voltage]: 3V-24V
過壓保護[Over Voltage Protection]: 120%min
過流保護[Over Current Protection]: 120%min
短路保護[Short Protection]: Auto Recovery
輸出電壓精度[Load Regulation]: ±5%
工作環境溫度[Operating Temperature]: 0~40℃
儲存溫度[Storage Temperature]: -20~85℃
工作濕度[Operating Relative Humidity]: 5~95%RH
絕緣耐壓[Withstanding Voltage]: AC 3000V(Min),5mA(Max)
絕緣阻抗[Insulation Resistance]: DC 500V 100MΩ(Min)
安規認證[Safety]: UL/cUL PSE FCC  GS/TUV CE CEC CB  ErP/Efficiency level:V (能源效率五等級

主要市場[Market]:日本,美國,加拿大,中國,臺灣,德國,歐洲,英國,澳洲
